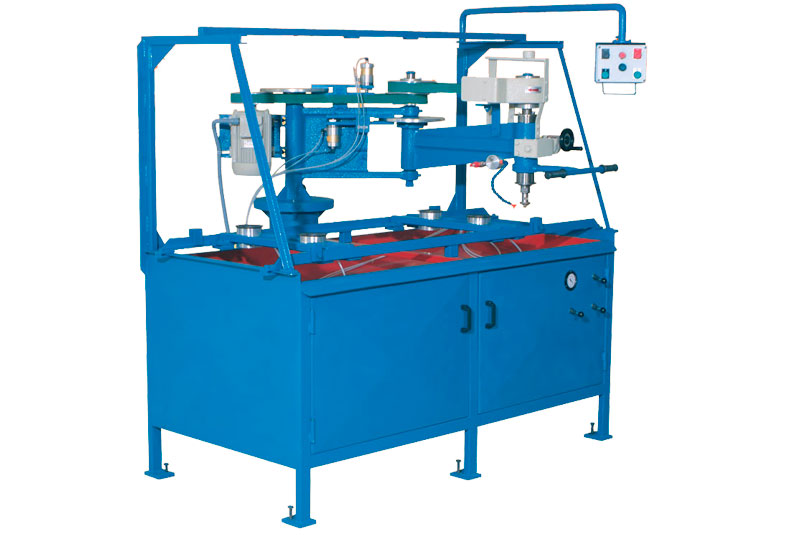

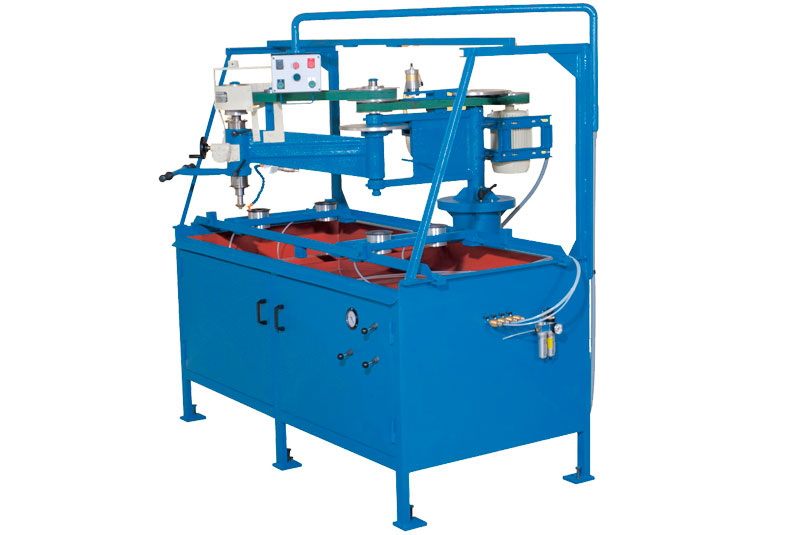

Pantograph Sawing – Engraving Machine

POWER: 4 HP, 0 – 9500 RPM INVERTER SYSTEM
WORKING DESK DIMENSIONS: 90 x 180 cm
MAX WIDTH OF MARBLE WORK PIECE: 80 cm – FREE LENGTH
OTHER TECHNICAL CHARACTERISTICS:

• 4 SUCKERS FOR FIXING MARBLE WORK PIECE OF FIXING IT BY THE EXTERNAL EDGE
• TWO INDEPENDENT AIR BRAKES FOR ARMS HOLDING
• DISPLACEMENT OF CUTTING TOOL IN CONTROL PANEL 70 mm MANUAL
• HEAD DISPLACEMENT 210 mm BY ELECTRIC MOTOR
• REVOLVING ELECTRIC CONTROL PANEL
• CAPABILITY OF WORKING WITH COPY MODEL
• HOLDER FOR MILLING AND ABRASIVE TOOLS OF INTERNATIONAL STANDARDS
• CAPABILITY OF WATER PUMP SETTING IN CLOSED CIRCUIT
