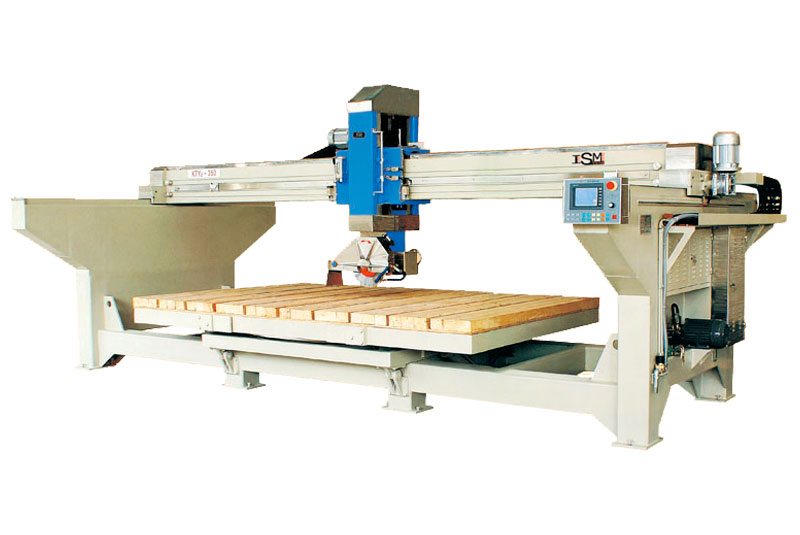

Profiling Machine ΚΤY-350

DIMENSIONS (L x W x H) (mm): 5600 x 2950 x 2250

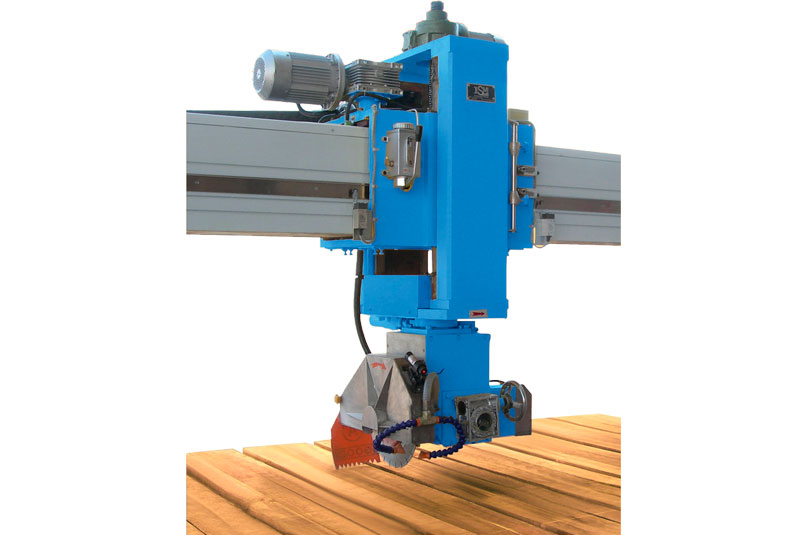

BLADE DIAMETER (mm): Φ350 – Φ500
BLADE’S VERTICAL SROKE (mm): 250

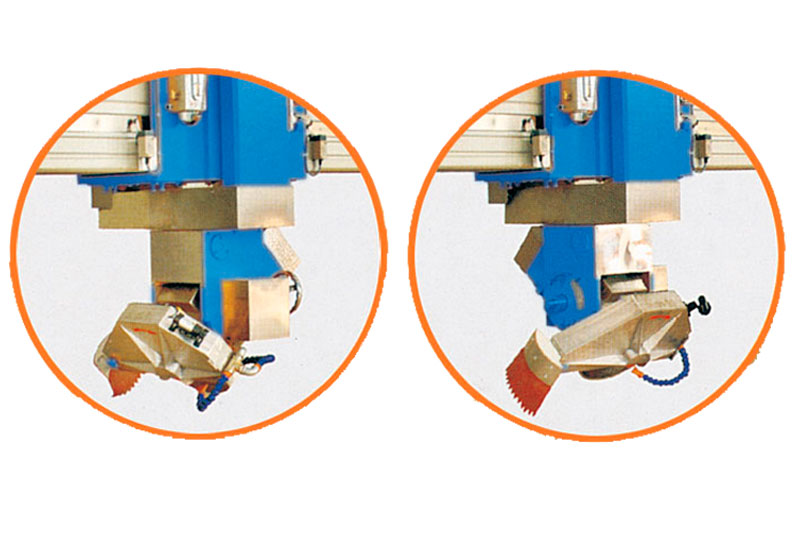

HEAD INCLINATION (FOR SIDELONG CUTS): 0 – 45 & VERTICALLY

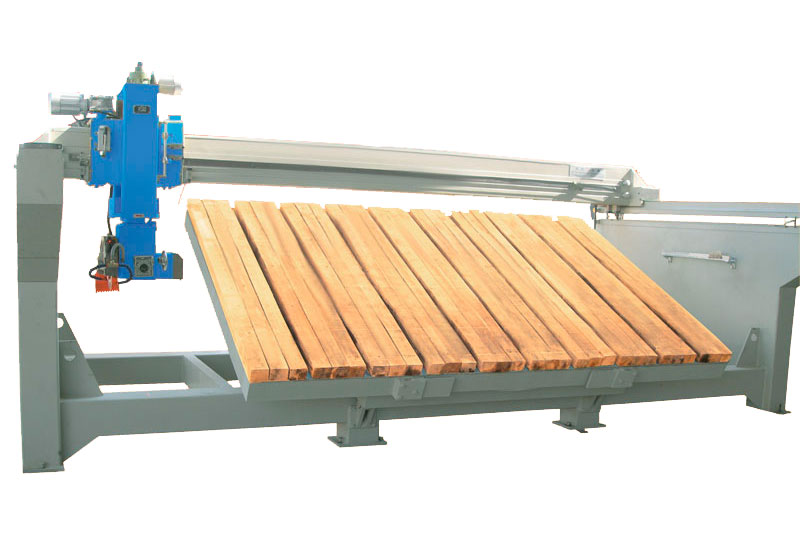

CUTTING TABLE’S ROTATION RANGE: 0 – 360 (ELECTRONICAL CONTROLLED)
POWER OF MAIN ENGINE: 15HP / 11KW
SIZE OF CUTTING TABLE: 0 – 85
WEIGHT (kgr): 4500
AUTOMATICALLY LUBRICATED: AVAILABLE
MATERIAL OF CONSTRUCTION: CAST IRON & IRON

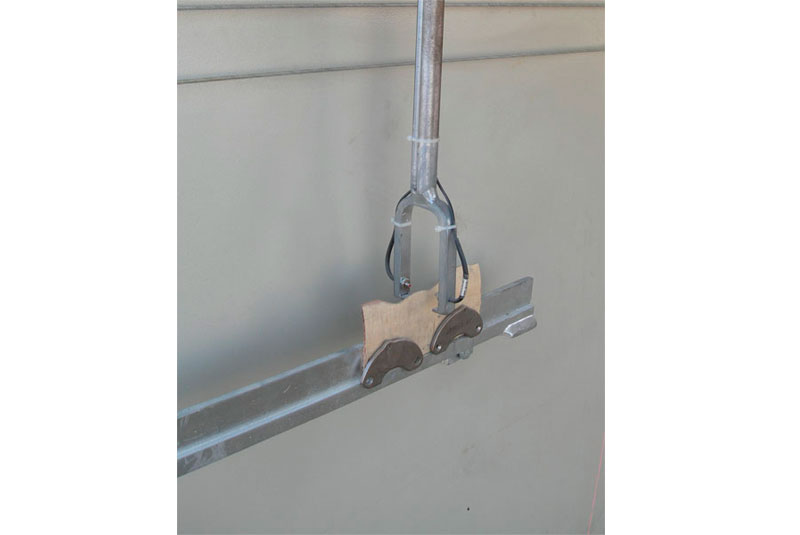

AUTOMATED COPY SYSTEM: AVAILABLE UPON REQUEST
METAL SUPPORTING BASE: INCLUDED

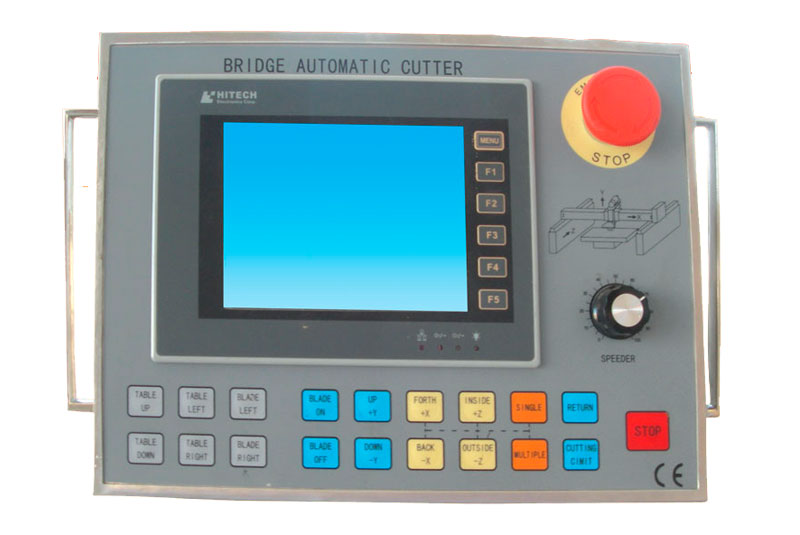

ΜΙΝΙ REMOTE CONTROL
